AUTO BED LEVELING SENSOR PROBE——For ER-20

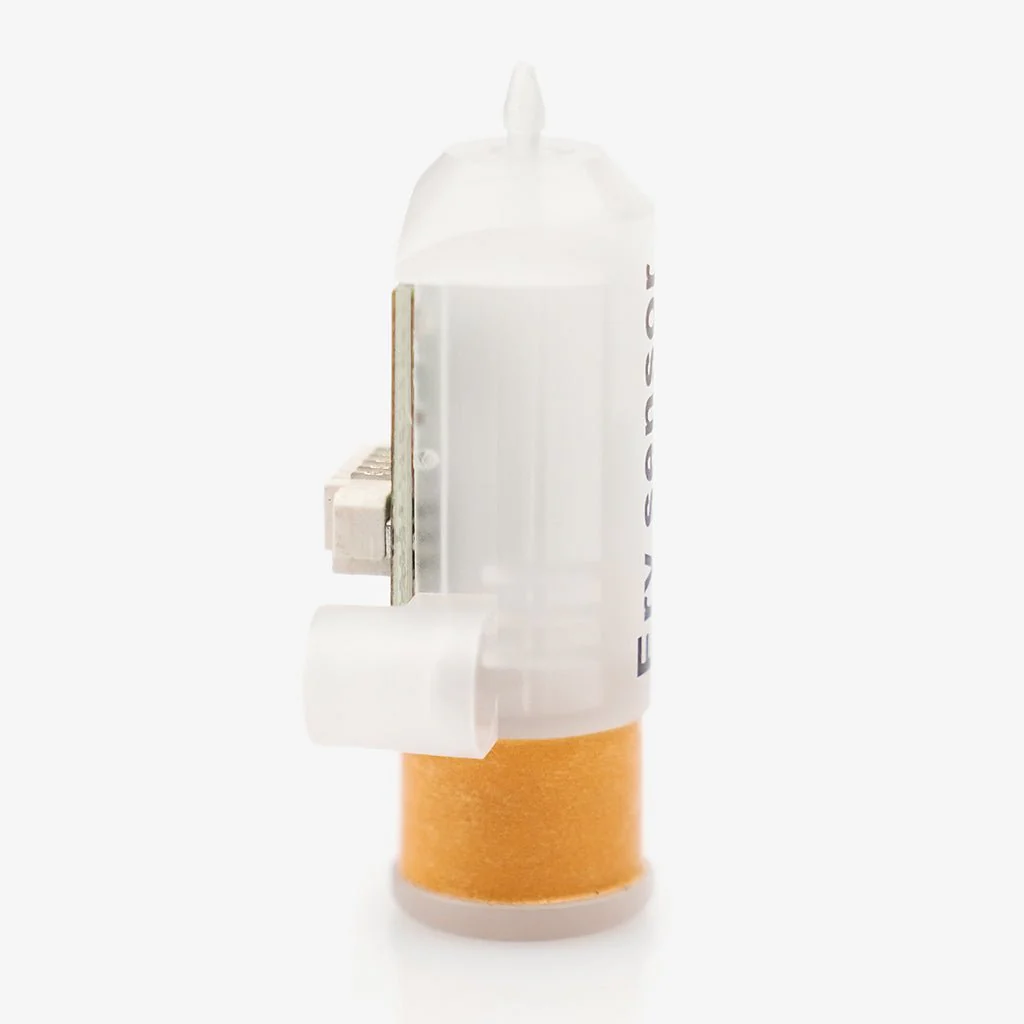

ERY Sensor is auto bed levelling sensor for the ER20 of Eryone
The position of the point can be obtained by touching the point on the heated bed, and then compensated by adjusting the Z axis height during the printing
The ERY sensor can give you the perfect first layer, accuracy can be as high as 0.01mm.

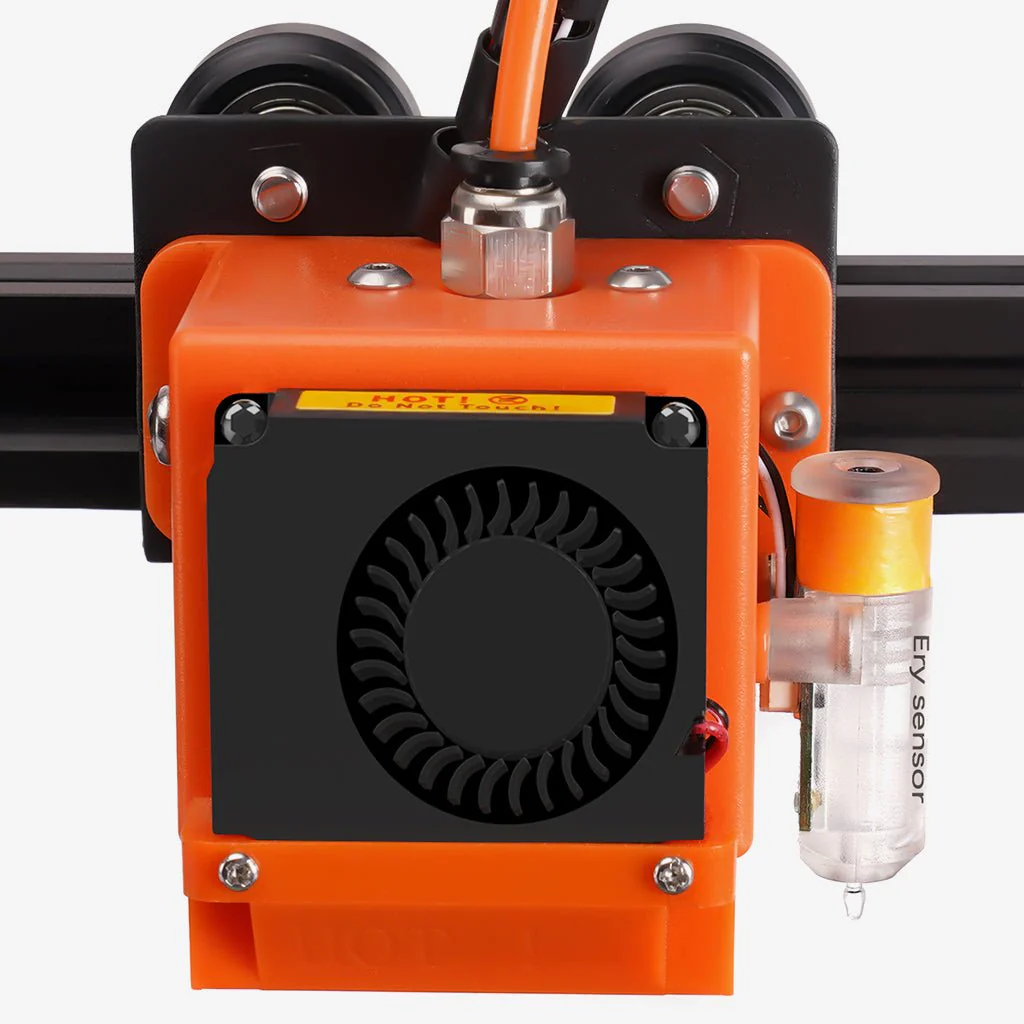

Suitable for the ER20 3d printer
ERY Sensor parameters:
Voltage: 5V
Current: 15mA
Max current(peak): 300mA
Shell material: PC
Shell color: White translucent
Wire:
5pin
-Z-MIN
-GND
-SIG
-5V
-GND
Shipping list:
1PCS sensor
FAQ:
A: Will it fit for the THINKER SE 3d printer?
Q: Not applicable, not compatible with thinker series.
