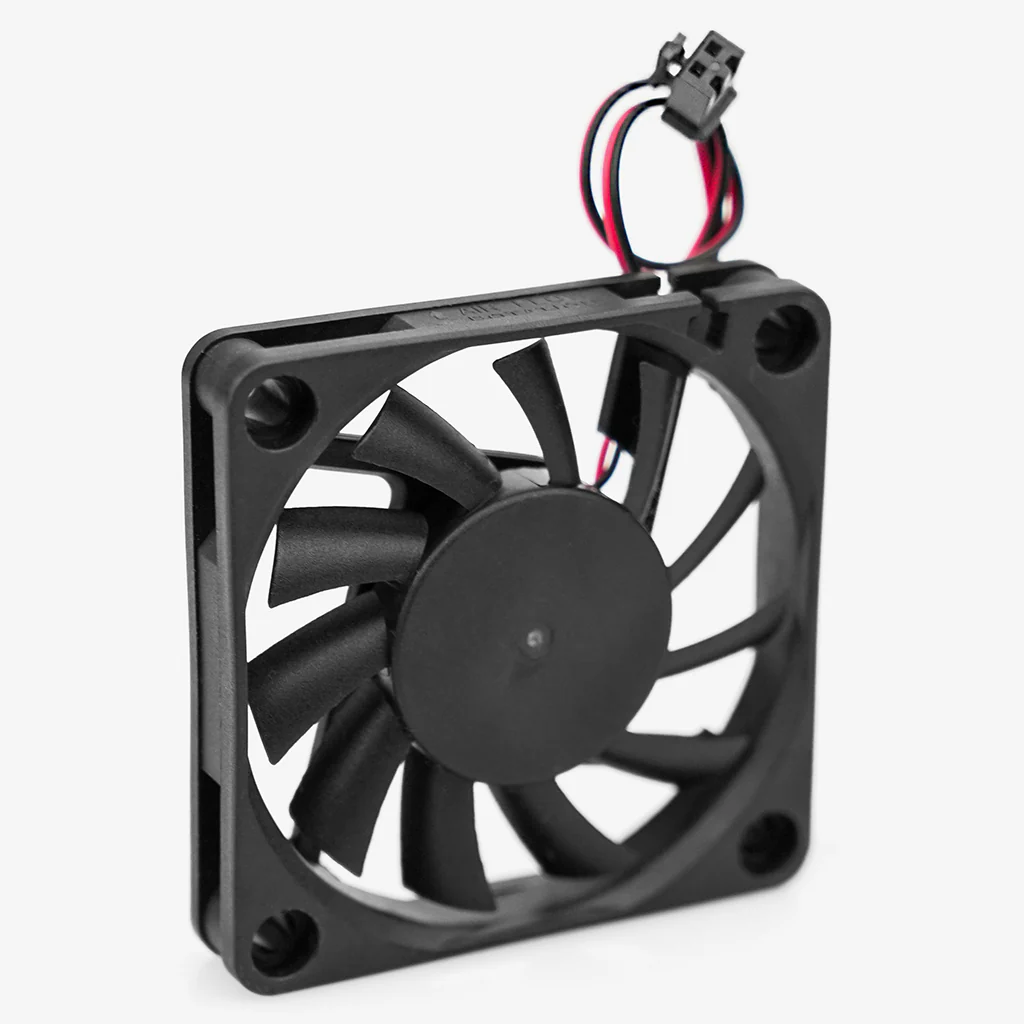

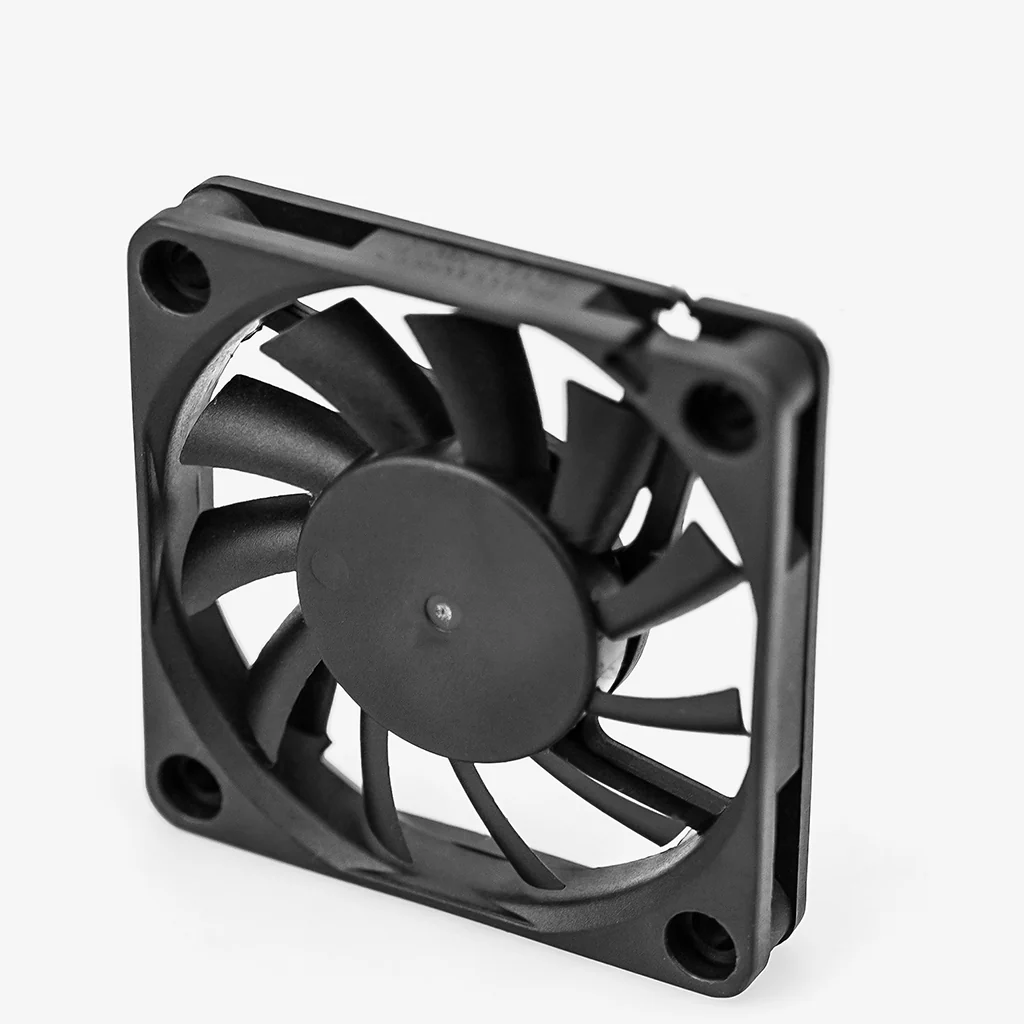

ERYONE 6010 MOTHERBOARD FAN——For ER-20

Highlights:

• -High-quality brushless 6010 DC 24V fan, sleeve-bearing design cooling cooler.
• -Plastic construction 11 blade fan. Dual Ball Bearing; Speed: 3100 ±5% RPM; Wind Volume: 11.2CFM
• -DC Brushless Cooling Fan, Rated Voltage: DC 24V, Current: 0.06A; Noise: 26DBA
• -60 x 60 x 10mm Fans. Connector: 2 Terminal Connector with 2pin-XHB2.54mm
• -Suitable for 3D printers of ER20 3D printer.



Description :

• Model: RA06010HD2
• NAME:DC24V BRUSHLESS FAN
• Rated Voltage : DC24V
• Consuming Current : 0.06A
• Consuming Power: 1.44W
• Connector: 2pin-XHB2.54MM
• Rated Speed: 3100 ±10% RPM
• Iife Expectance: 67,000 hours at 25 degree
• Certificate: CE
• Acoustic Noise: 26DBA
• DC Line Length : 130MM
• Max. Air Flow: 11.2CFM
• Size:60x60x10mm



Additional:
***:Noise is measured at rated test condition in semi-anechoic chamber in free air with microphone at a distance of 1m apart from the axis of fan at intake side.
